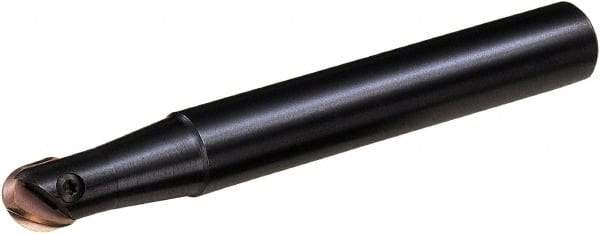

Sumitomo - 1/2" Cut Diam, 0.427" Max Depth of Cut, 5/8" Shank Diam, 4.428" OAL, Indexable Ball Nose End Mill - 2.5222" Head Length, Straight Shank, WBMF Toolholder, ZPGU2S Insert
Item #: 53967337
Brand: Sumitomo
Model #: 2900W0L
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4270 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | ZPGU2S |
| Toolholder Style | WBMF |
| Series | WaveMill |
| Overall Length (Decimal Inch) | 4.4280 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Head Length (Decimal Inch) | 2.5222 |
