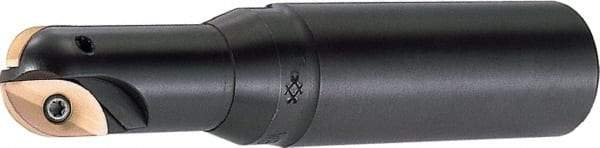

Sumitomo - 1" Cut Diam, 1.535" Max Depth of Cut, 1-1/4" Shank Diam, 6.546" OAL, Indexable Ball Nose End Mill - 4.285" Head Length, Straight Shank, WBMR Toolholder, SPMT 09T308, ZNMT4CX, ZNMT4SX Insert
Item #: 53967220
Brand: Sumitomo
Model #: 2900W17
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.5350 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | SPMT 09T308; ZNMT4CX; ZNMT4SX |
| Toolholder Style | WBMR |
| Series | WaveMill |
| Overall Length (Decimal Inch) | 6.5460 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 4.2850 |
| Number of Side Inserts Used on Toolholder | 2 |
