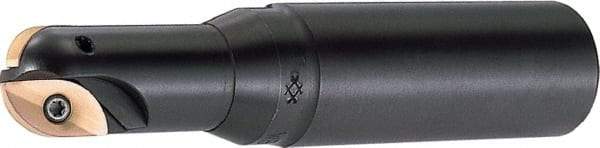

Sumitomo - 1-1/2" Cut Diam, 1.543" Max Depth of Cut, 1-1/2" Shank Diam, 9.779" OAL, Indexable Ball Nose End Mill - 6.535" Head Length, Straight Shank, WBMR Toolholder, ZNMT6CX, ZNMT6SX Insert
Item #: 53967006
Brand: Sumitomo
Model #: 2900W1J
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.5430 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | ZNMT6CX; ZNMT6SX |
| Toolholder Style | WBMR |
| Series | WaveMill |
| Overall Length (Decimal Inch) | 9.7790 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 6.5350 |
