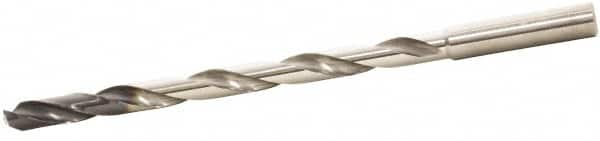

Extra Length Drill Bit: 0.3594″ Dia, 140 °, Solid Carbide DEX Finish, 5.433″ Flute Length, 7.677″ OAL, Straight-Cylindrical Shank, Series MDW-XHV
Item #: 53958831
Brand: Sumitomo
Model #: U101303
Product Specifications
| Tool Material | Solid Carbide |
| Coating/Finish | DEX |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | MDW-XHV |
| Tool Application | Deep Hole Drilling |
| Drill Bit Diameter Tolerance | -0.00080 to -0.00165 in |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Primary Workpiece Material | Ductile Iron |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Overall Length (Decimal Inch) | 7.6770 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Shank Length (Decimal Inch) | 2.1260 |
| Flute Length (Decimal Inch) | 5.4330 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 5.5510 |
