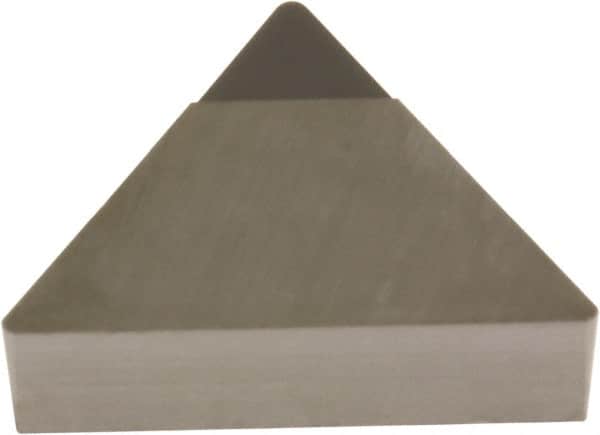

Sumitomo - NF-TBGE521 Grade DA2200 Polycrystalline Diamond (PCD) Turning Insert - 60° Triangle, 5/32" Inscr Circle, 1/16" Thick, 1/64" Corner Radius
Item #: 53958161
Brand: Sumitomo
Model #: 16CDBEH
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | NF-TBGE |
| Insert Size | 521 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | DA2200 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 5 |
| Included Angle | 60 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
