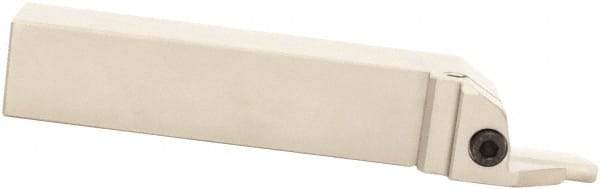

Sumitomo - GNDF, External, Left Hand, 5.23mm Max Depth of Cut, Indexable Grooving Tool Holder - GCMN, GCML, GCMR Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 5" OAL
Item #: 53952941
Brand: Sumitomo
Model #: 2600AQH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2059 |
| Maximum Depth of Cut (mm) | 5.23 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | GNDF |
| Insert Compatibility | GCMN; GCML; GCMR |
| Shank Height (Inch) | 1-1/4 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | GND |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Profiling; Turning |
| Insert Seat Size | 20 |
| Maximum Groove Outside Diameter (mm) | 70.00 |
| Minimum Axial Groove Inside Diameter(mm) | 50.00 |
