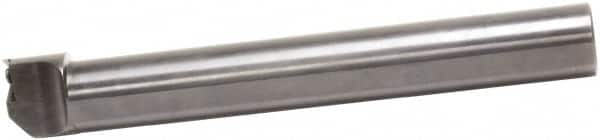

Sumitomo - GWCI, Internal, Left Hand, 2mm Max Depth of Cut, 0.33 to 2.8mm Groove Width, Indexable Grooving Tool Holder - TGA Insert Compatibility, 25mm Shank Width, 200mm OAL
Item #: 53951984
Brand: Sumitomo
Model #: 2600238
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0130 |
| Minimum Groove Width (mm) | 0.33 |
| Maximum Groove Width (mm) | 2.80 |
| Maximum Groove Width (Decimal Inch) | 0.1102 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Toolholder Style | GWCI |
| Insert Compatibility | TGA |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | SumiTurn |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Number of Inserts Used on Toolholder | 1 |
| Minimum Hole Diameter (mm) | 35.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.3780 |
| Back of Bar to Cutting Edge (mm) | 30.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1811 |
| Center to Cutting Edge (mm) | 17.50 |
| Center to Cutting Edge (Decimal Inch) | 0.6890 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Complete Insert Compatibility | TGA |
