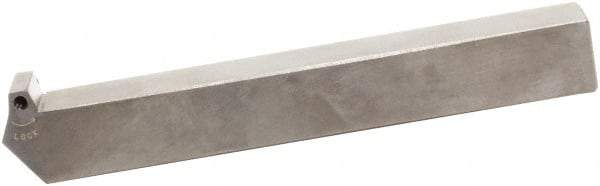

Sumitomo - SCT, Right Hand, 1mm Max Depth of Cut, 2-1/2" Max Groove Width, Indexable Grooving Tool Holder - CTR 12 Insert Compatibility, 5/8" Shank Height, 5/8" Shank Width, 6" OAL
Item #: 53951851
Brand: Sumitomo
Model #: 2600W1S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Groove Width (Decimal Inch) | 2.5000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | SCT |
| Insert Compatibility | CTR 12 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | Swiss |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Insert Holding Method | Screw |
| Head Height (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 0.6250 |
| Complete Insert Compatibility | CTR 12 |
