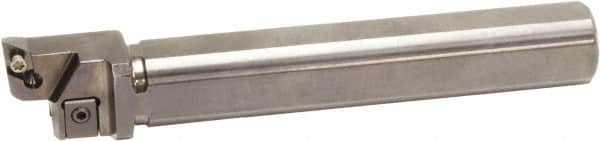

Sumitomo - 100mm OAL, 16mm Shank Diam, S-CKBR Indexable Boring Bar - 11mm Max Bore Depth, KBMX Insert, Clamp Holding Method
Item #: 53951653
Brand: Sumitomo
Model #: 2600178
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-CKBR |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 11.00 |
| Maximum Bore Depth (Decimal Inch) | 0.4331 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | KBMX |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 8.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3150 |
| Complete Insert Compatibility | KBMX |
| Toolholder Material | Steel |
