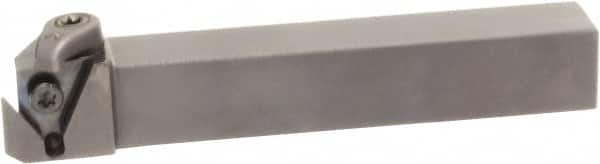

Sumitomo - GWC, External, Right Hand, 5mm Max Depth of Cut, 2.5 to 2.5mm Groove Width, Indexable Grooving Tool Holder - TGA. 4.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 53951646
Brand: Sumitomo
Model #: 2000192
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.0984 |
| Minimum Groove Width (mm) | 2.50 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | GWC |
| Insert Compatibility | TGA. 4.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | SumiTurn |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Complete Insert Compatibility | TGAR/L 40094BF; TGAR/L 40097BF; TGAR/L 40105BF; TGAR/L 40110BF; TGAR/L 40122BF; TGAR/L 40125BF; TGAR/L 40142BF; TGAR/L 40156BF; TGAR/L 4250BF; TGAR/L 4265BF; TGAR/L 4270BF; TGAR/L 4280BF; TGAR/L 4300BF; TGAR/L 4320BF; TGAR/L 4330BF; TGAR/L 4350BF; TGAR/L |
