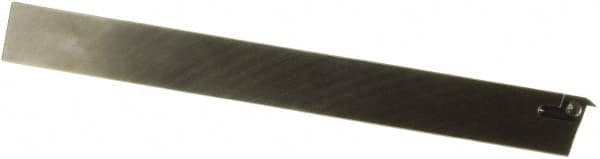

Sumitomo - SCT, Right Hand Cut, 16mm Shank Height x 16mm Shank Width, Indexable Turning Toolholder - 150mm OAL, CTR 12 Insert Compatibility, Series Screw Lock
Item #: 53950689
Brand: Sumitomo
Model #: 2600105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SCT |
| Series | Screw Lock |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | CTR 12 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
