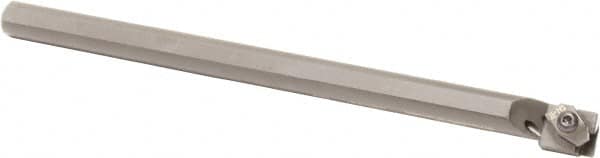

Sumitomo - 1-1/8" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-SE Indexable Boring Bar - SG 2R Insert, Clamp Holding Method
Item #: 53947917
Brand: Sumitomo
Model #: U102138
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SE |
| Series | SumiNotch |
| Minimum Bore Diameter (Decimal Inch) | 1.1250 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | SG 2R |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | SG 2R |
