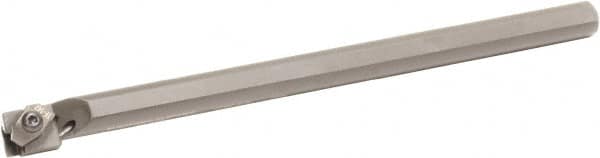

Sumitomo - 1-3/8" Min Bore Diam, 12" OAL, 1" Shank Diam, A-SE Indexable Boring Bar - SG 3L Insert, Clamp Holding Method
Item #: 53947768
Brand: Sumitomo
Model #: U102129
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SE |
| Series | SumiNotch |
| Minimum Bore Diameter (Decimal Inch) | 1.3750 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | SG 3L |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.6880 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | SG 3L |
