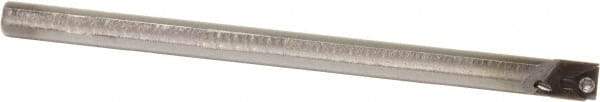

Sumitomo - 0.415" Min Bore Diam, 5" OAL, 5/16" Shank Diam, A-STFP Indexable Boring Bar - TPMT 1.81.51 Insert, Screw Holding Method
Item #: 53947586
Brand: Sumitomo
Model #: U101844
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFP |
| Series | ANSI-ISO |
| Minimum Bore Diameter (Decimal Inch) | 0.4150 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Insert Compatibility | TPMT 1.81.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 0 |
| Center to Cutting Edge (Decimal Inch) | 0.2190 |
| Insert Thickness (Inch) | 3/32 |
| Rake Angle | -8 |
| Complete Insert Compatibility | TPMT 1.81.51 |
| Toolholder Material | Steel |
