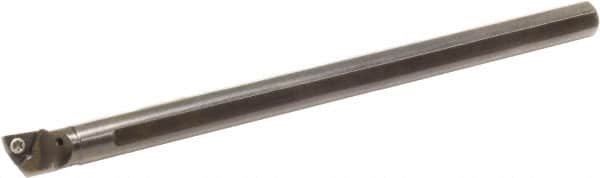

Sumitomo - 0.48" Min Bore Diam, 6" OAL, 3/8" Shank Diam, A-SWLP Indexable Boring Bar - WPMT 21.51 Insert, Screw Holding Method
Item #: 53947453
Brand: Sumitomo
Model #: U101858
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SWLP |
| Series | ANSI-ISO |
| Minimum Bore Diameter (Decimal Inch) | 0.4800 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | WPMT 21.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -5 |
| Complete Insert Compatibility | WPMT 21.51 |
| Toolholder Material | Steel |
