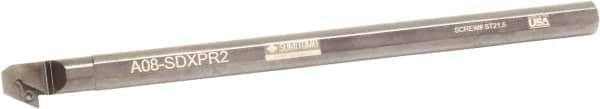

Sumitomo - 0.85" Min Bore Diam, 10-1/2" OAL, 5/8" Shank Diam, A-SDXP Indexable Boring Bar - DPMT 21.51 Insert, Screw Holding Method
Item #: 53947040
Brand: Sumitomo
Model #: U101893
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDXP |
| Series | ANSI-ISO |
| Minimum Bore Diameter (Decimal Inch) | 0.8500 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 10-1/2 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | DPMT 21.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Complete Insert Compatibility | DPMT 21.51 |
| Toolholder Material | Steel |
