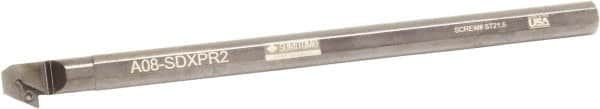

Sumitomo - 0.98" Min Bore Diam, 10-3/4" OAL, 3/4" Shank Diam, A-SDXP Indexable Boring Bar - DPMT 32.52 Insert, Screw Holding Method
Item #: 53946786
Brand: Sumitomo
Model #: U101915
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDXP |
| Series | ANSI-ISO |
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 10-3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | DPMT 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Insert Thickness (Inch) | 5/32 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -2 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Complete Insert Compatibility | DPMT 32.52 |
| Toolholder Material | Steel |
