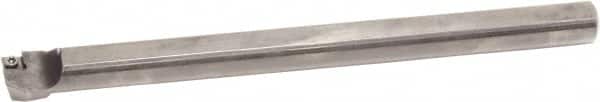

Sumitomo - 1" Min Bore Diam, 10" OAL, 3/4" Shank Diam, BSCLO Indexable Boring Bar - CPGM 32 Insert, Screw Holding Method
Item #: 53946745
Brand: Sumitomo
Model #: 2000W18
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | BSCLO |
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | CPGM 32 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CPGM 32 |
| Toolholder Material | Steel |
