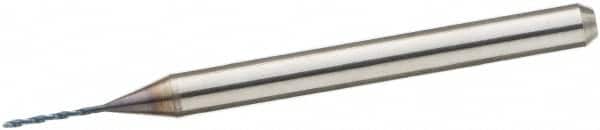

Micro Drill Bit: 0.0193″ Dia, 140 °, Solid Carbide ZX Finish, 1.4961″ OAL, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series MDSS
Item #: 53936068
Brand: Sumitomo
Model #: 4PGE027
Product Specifications
| Drill Bit Size (mm) | 0.49 |
| Drill Bit Size (Decimal Inch) | 0.0193 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 5.00 |
| Coating/Finish | ZX |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Series | MDSS |
| Overall Length (Decimal Inch) | 1.4961 |
| Overall Length (mm) | 38.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Tool Application | Very Small Hole Drilling |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | 0.000 to -0.009 mm |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Steel |
| Primary Workpiece Material Code | P; H; K; M |
| Shank Diameter (mm) | 3.00 |
| Shank Length (mm) | 28.00 |
