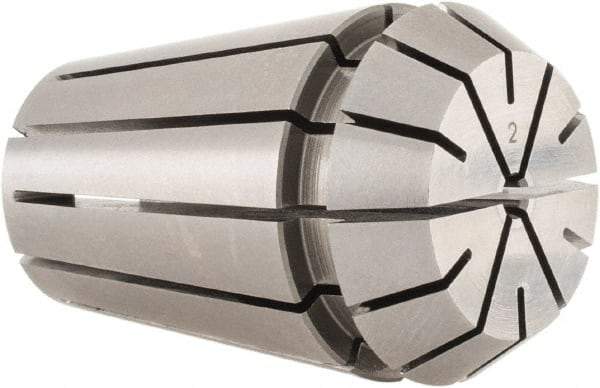

Sumitomo - 1 to 2mm ER20 Collet - 0.0005" TIR
Item #: 53928438
Brand: Sumitomo
Model #: U102802
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER20 |
| Size Range (Decimal Inch) | 0.0394-0.0787 |
| Size Range (mm) | 1.00-2.00 |
| TIR (Decimal Inch) | 0.000500 |
| Minimum Collet Capacity (mm) | 0.99 |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (mm) | 1.98 |
| Maximum Collet Capacity (Decimal Inch) | 0.0780 |
| PSC Code | 5136 |
