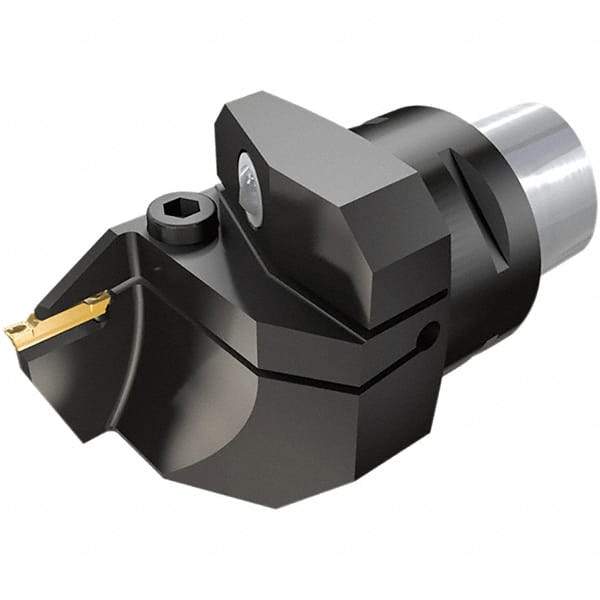

Iscar - LNMX 1506.. Insert, 65mm Head Length, 3mm Min Groove Width, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size C6, Through Coolant, Series CAMFIX, Heli-Grip
Item #: 53909131
Brand: Iscar
Model #: 2500677
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CAMFIX; Heli-Grip |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | LNMX 1506.. |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5590 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 31.75 |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Complete Insert Compatibility | LNMX 150608L-HM; LNMX 150608L-HT; LNMX 150608L-WG; LNMX 150612L-HM; LNMX 150612L-HT; LNMX 150612L-WG; LNMX 150616L-HT |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
