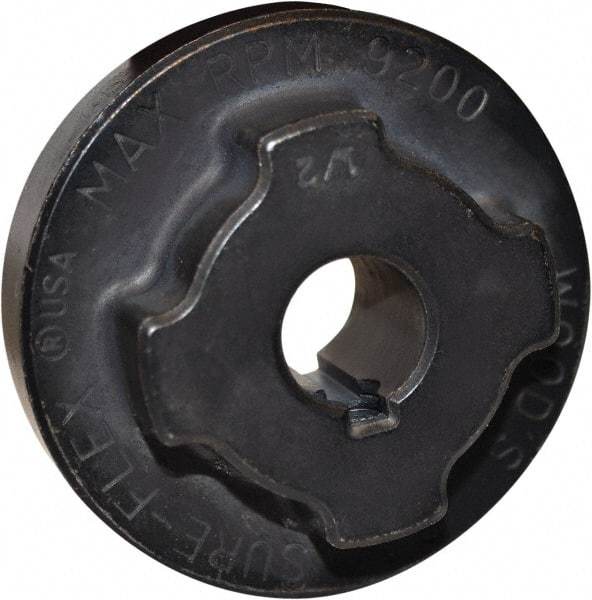

TB Wood's - 3/4" Max Bore Diam, 3/16" x 3/32" Keyway Width x Depth, 2-1/2" Hub, 4 Flexible Coupling Flange - 2-1/2" OD, 55/64" OAL, Sintered Steel, Type J
Item #: 53903266
Brand: TB Wood's
Model #: 4J34
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Flange |
| Bore Diameter (Decimal Inch) | 0.7500 |
| Maximum Bore Diameter (Inch) | 3/4 |
| Outside Diameter (Decimal Inch) | 2.5000 |
| Outside Diameter (Inch) | 2-1/2 |
| Overall Length (Inch) | 55/64 |
| Overall Length (Decimal Inch) | 0.7969 |
| Material | Sintered Steel |
| Special Item Information | Type J |
| Coupling Size | 4 |
| Series | Sure-Flex |
| PSC Code | 5340 |
