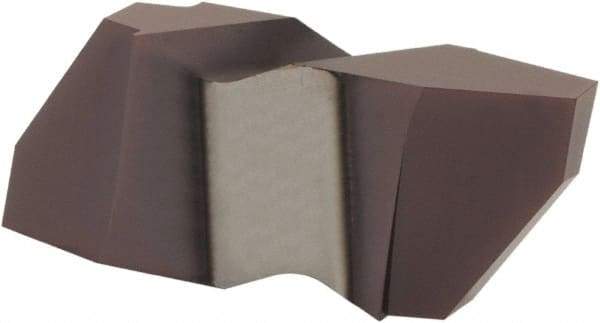

Hertel - IA6 Grade HC215, Internal/External Acme Threading Insert - 3 TPI Int Pitch, Right Hand Insert, TiAlN Finish, Carbide
Item #: 53828778
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IA |
| Insert Size | 6 |
| Thread Type | Internal/External |
| Insert Hand | Right Hand |
| Thread Standard | Acme |
| Manufacturer's Grade | HC215 |
| Internal Pitch/TPI | 3 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| Width of Cutting Tip (Decimal Inch) | 0.1184 |
| Thickness (Decimal Inch) | 0.3830 |
| Series | HertelNotch |
| Included Angle of Threading Tip | 29 |
| Tip to Top of Insert (Decimal Inch) | 0.2830 |
