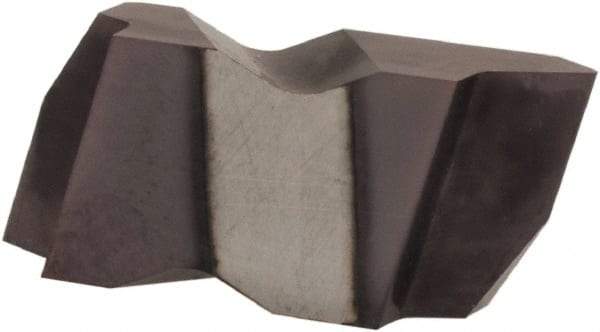

Hertel - IJF3008 Grade HC225, External UNJ Threading Insert - 20 TPI Ext Pitch, Right Hand Insert, TiAlN Finish, Carbide
Item #: 53828711
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IJF |
| Insert Size | 3008 |
| Thread Type | External |
| Insert Hand | Right Hand |
| Thread Standard | UNJ |
| Manufacturer's Grade | HC225 |
| External Pitch/TPI | 20 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| Minimum Corner Radius (Decimal Inch) | 0.0075 |
| Maximum Corner Radius (Decimal Inch) | 0.0085 |
| Thickness (Decimal Inch) | 0.1950 |
| Series | HertelNotch |
| Included Angle of Threading Tip | 60 |
| Tip to Top of Insert (Decimal Inch) | 0.1410 |
