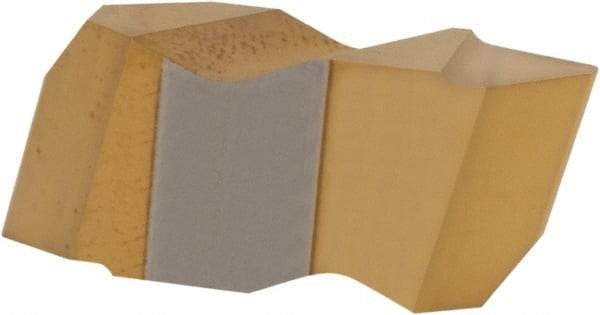

Hertel - IJP3020 Grade HC335, External UNJ Threading Insert - 8 TPI Ext Pitch, Right Hand Insert, TiN Finish, Carbide
Item #: 53828604
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IJP |
| Insert Size | 3020 |
| Thread Type | External |
| Insert Hand | Right Hand |
| Thread Standard | UNJ |
| Manufacturer's Grade | HC335 |
| External Pitch/TPI | 8 TPI |
| Coating | TiN |
| Material | Carbide |
| Coating Process | PVD |
| Minimum Corner Radius (Decimal Inch) | 0.0188 |
| Maximum Corner Radius (Decimal Inch) | 0.0198 |
| Thickness (Decimal Inch) | 0.1950 |
| Series | HertelNotch |
| Included Angle of Threading Tip | 60 |
| Rake | Positive |
| Rake Angle | 5 |
| Tip to Top of Insert (Decimal Inch) | 0.0980 |
