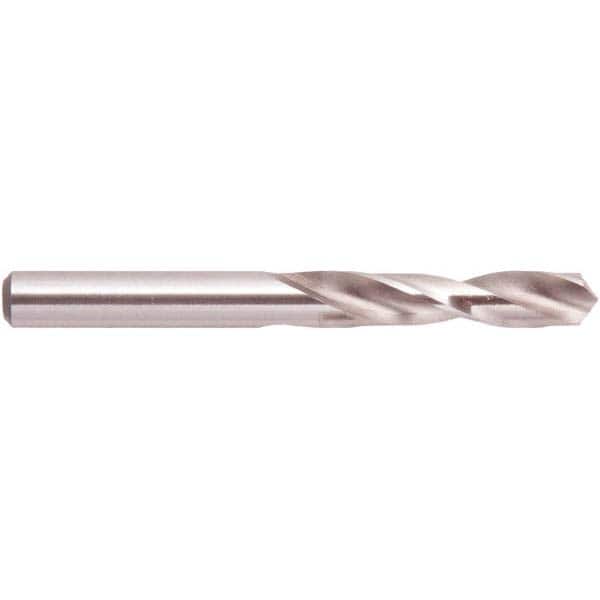

National Twist Drill - 37/64" 118° Spiral Flute High Speed Steel Screw Machine Drill Bit
Item #: 58851809
Brand: National Twist Drill
Model #: 016337AW
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5781 |
| Drill Bit Size (Inch) | 37/64 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 2-5/8 |
| Flute Length (Decimal Inch) | 2.6250 |
| Overall Length (Inch) | 4-1/8 |
| Overall Length (Decimal Inch) | 4.1250 |
| Shank Diameter (Decimal Inch) | 0.5781 |
| Shank Diameter (Inch) | 37/64 |
| Shank Length (Inch) | 1-1/2 |
| Shank Length (Decimal Inch) | 1.5000 |
| Threaded Shank | No |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0012 |
| Web Thinning | Web-Thinned |
| Series/List | 241 |
