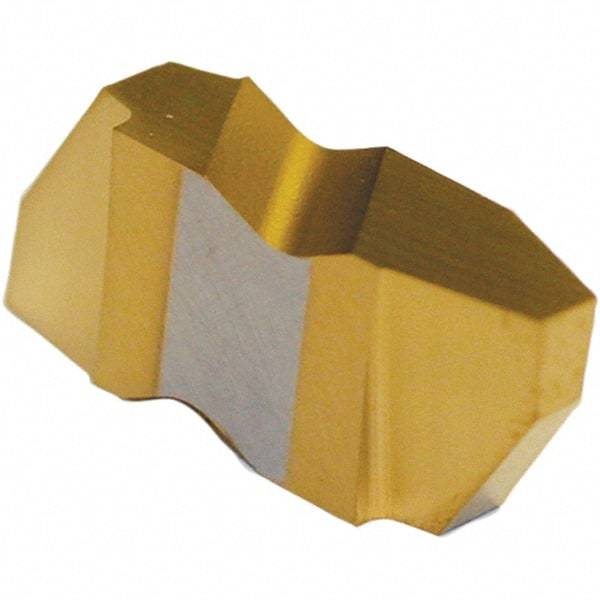

Tool-Flo - FLA3 Grade AC50C, Internal/External Acme Threading Insert - 14 TPI Ext Pitch, Right Hand Insert, AlTiN Finish, Carbide
Item #: 53790846
Brand: Tool-Flo
Model #: 553014RAC50C
Exact Tooling IR#: 04
Features and Benefits
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLA |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Acme |
| Manufacturer's Grade | AC50C |
| External Pitch/TPI | 14 TPI |
| Coating | AlTiN |
| Material | Carbide |
| Coating Process | PVD |
| Width of Cutting Tip (Decimal Inch) | 0.0239 |
| Thickness (Decimal Inch) | 0.1950 |
| Series | Flo-Lock |
| Tip to Top of Insert (Decimal Inch) | 0.1490 |
| Blade Height (Decimal Inch) | 0.3440 |
| Manufacturers Catalog Number | FLA-3R14 |
