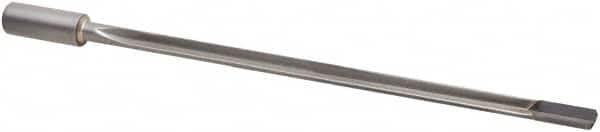

Die Drill Bit: 5/32″ Dia, Solid Carbide Coated, Series 5641
Item #: 53733531
Brand: Guhring
Model #: 9056410039700
Product Specifications
| DrillType | Straight-Flute; Single Flute Gun |
| Drill Size (Decimal) | 0.1563; 0.1563 in; 3.97 mm |
| Drill Size (Inch) | 5/32 |
| Drill Size (Metric) | 3.97 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 185.00 |
| Flute Length (Inch) | 185.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 10.0 mm |
| Shank Diameter (Metric) | 10.00 |
| Shank Diameter (Decimal) | 10.0 mm |
| Shank Length (Metric) | 40.00; 40 mm |
| Point Type | Special |
| OverallLength (Decimal) | 230.0 mm |
| Overall Length (Metric) | 230.00 |
| Finish/Coating | TiCN (Tip) |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Metric) | h5 |
| Web Thinning | Web-Thinned |
| Flute Length x Diameter Ratio | 40xD |
| Series/List | 5641 |
