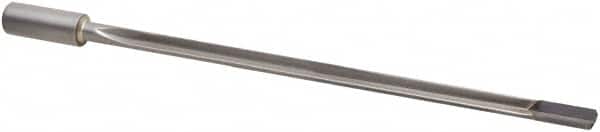

Die Drill Bit: 13/64″ Dia, Solid Carbide TiCN Finish, Series 5641
Item #: 53733507
Brand: Guhring
Model #: 9056410051560
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Decimal) | 0.2030; 5.16 mm; 0.203 in |
| Drill Size (Inch) | 13/64 |
| Drill Size (Metric) | 5.16 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 232.00 |
| Flute Length (Inch) | 232.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 16.0 mm |
| Shank Diameter (Metric) | 16.00 |
| Shank Diameter (Decimal) | 16.0 mm |
| Point Type | Special |
| OverallLength (Decimal) | 280.0 mm |
| Overall Length (Metric) | 280.00 |
| Finish/Coating | TiCN (Tip) |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Flute Length x Diameter Ratio | 40xD |
| Series/List | 5641 |
