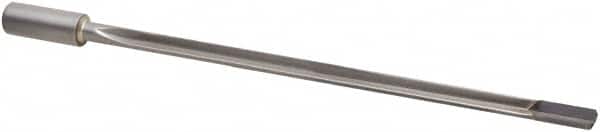

Die Drill Bit: 0.3150″ Dia, Solid Carbide TiCN Finish, Series 5641
Item #: 53733465
Brand: Guhring
Model #: 9056410080000
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Decimal) | 0.315 in; 8.0 mm; 0.3150 |
| Drill Size (Metric) | 8.00 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 372.00 |
| Flute Length (Inch) | 372.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 16.0 mm |
| Shank Diameter (Metric) | 16.00 |
| Shank Diameter (Decimal) | 16.0 mm |
| Point Type | Special |
| OverallLength (Decimal) | 430.0 mm |
| Overall Length (Metric) | 430.00 |
| Finish/Coating | TiCN (Tip) |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Flute Length x Diameter Ratio | 40xD |
| Series/List | 5641 |
