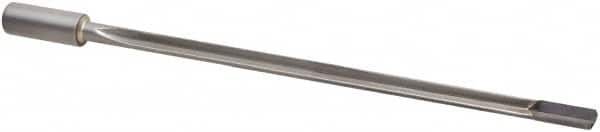

Die Drill Bit: 0.4311″ Dia, Carbide Tipped TiCN Finish, Series 5642
Item #: 53733333
Brand: Guhring
Model #: 9056420109500
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Decimal) | 0.4311; 0.4311 in; 10.95 mm |
| Drill Size (Metric) | 10.95 |
| Drill/Shank Material | Carbide-Tipped |
| Flute Length (Metric) | 945.00 |
| Flute Length (Inch) | 945.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 20.0 mm |
| Shank Diameter (Metric) | 20.00 |
| Shank Diameter (Decimal) | 20.0 mm |
| Point Type | Special |
| OverallLength (Decimal) | 995.0 mm |
| Overall Length (Metric) | 995.00 |
| Finish/Coating | TiCN (Tip) |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Flute Length x Diameter Ratio | 80xD |
| Series/List | 5642 |
