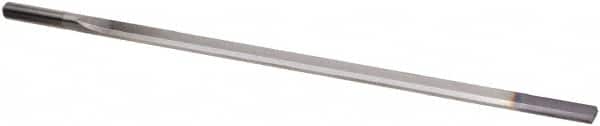

Die Drill Bit: 1/8″ Dia, Solid Carbide Coated, Series 5647
Item #: 53733069
Brand: Guhring
Model #: 9056470031700
Product Specifications
| DrillType | Straight-Flute; Single Flute Gun |
| Drill Size (Decimal) | 0.1248; 0.1248 in; 3.17 mm |
| Drill Size (Inch) | 1/8 |
| Drill Size (Metric) | 3.17 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 190.00 |
| Flute Length (Inch) | 190.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 6.0 mm |
| Shank Diameter (Metric) | 6.00 |
| Shank Diameter (Decimal) | 6.0 mm |
| Shank Length (Metric) | 36 mm; 36.00 |
| Point Type | Special |
| OverallLength (Decimal) | 230.0 mm |
| Overall Length (Metric) | 230.00 |
| Finish/Coating | nano-A (Tip) |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Metric) | h5 |
| Web Thinning | Web-Thinned |
| Flute Length x Diameter Ratio | 50xD |
| Series/List | 5647 |
