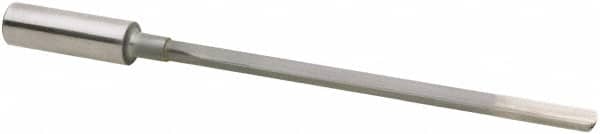

Die Drill Bit: 0.1378″ Dia, Solid Carbide - Uncoated, Series 5024;5026
Item #: 53723599
Brand: Guhring
Model #: 9050260035000
Product Specifications
| DrillType | Straight-Flute; Single Flute Gun |
| Drill Size (Decimal) | 0.1378 in; 3.5 mm; 0.1378 |
| Drill Size (Metric) | 3.50 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 120.00 |
| Flute Length (Inch) | 120.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 10.0 mm |
| Shank Diameter (Metric) | 10.00 |
| Shank Diameter (Decimal) | 10.0 mm |
| Shank Length (Metric) | 40.00; 40 mm |
| Point Type | Special |
| OverallLength (Decimal) | 175.0 mm |
| Overall Length (Metric) | 175.00 |
| Finish/Coating | Bright |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Metric) | h5 |
| Web Thinning | Web-Thinned |
| Series/List | 5024; 5026 |
