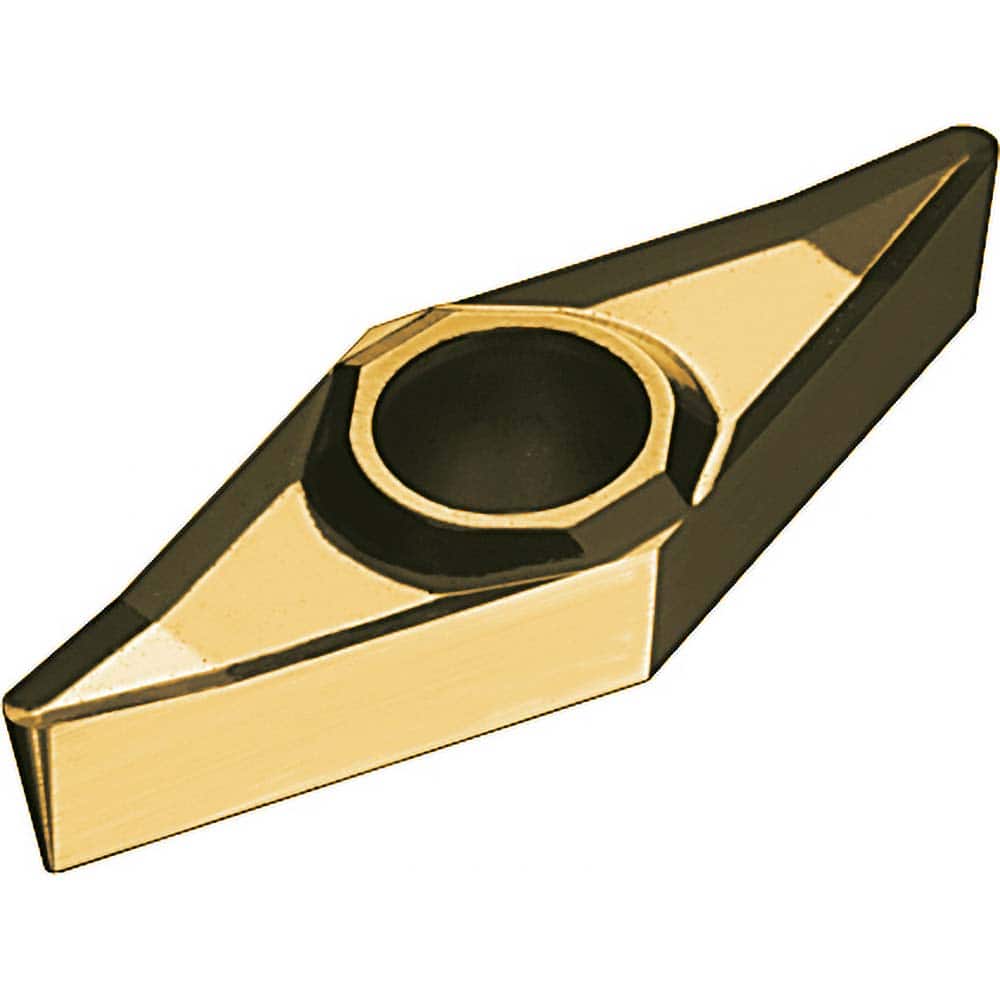

Arno - VCGT220.5FN-ALU AT10 Carbide Turning Insert
Item #: 53694188
Brand: Arno
Model #: 28261
Product Specifications
| Insert Style | VCGT |
| Insert Size | 220.5 |
| Material | Carbide |
| Width (mm) | 6.35 |
| Length (mm) | 11.10 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 3.1800 |
| Manufacturer's Grade | AT10 |
| Chip Breaker | ALU |
| Insert Length (mm) | 11.10 |
| Hole Diameter (Decimal Inch) | 2.9000 |
| ISO Number | VCGT 110302FN-ALU AT10 |
| Rake | Positive |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Manufacturers Catalog Number | VCGT 110302FN-ALU |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | P; M; K; S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | PVD |
| Corner Radius (mm) | 0.20 |
| Shape | Diamond |
