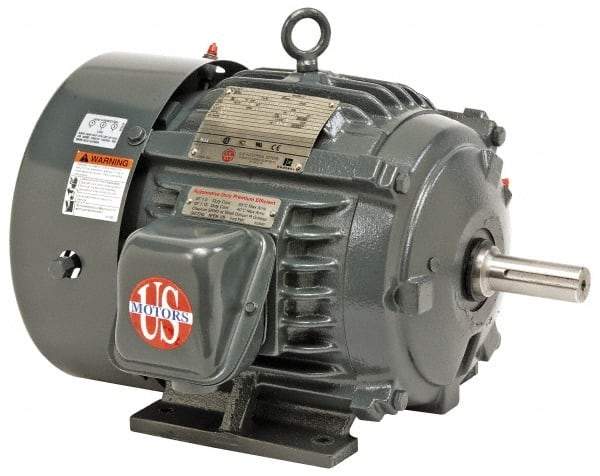

US Motors - 1/2 hp, TENV Enclosure, No Thermal Protection, 1,725 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 1.7/0.85 Full Load Amps, B Class Insulation, Reversible
Item #: 53656823
Brand: US Motors
Model #: A12P2B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TENV |
| Horsepower | 1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Definite Purpose |
| Full Load Amperage | 1.7/0.85 |
| Insulation Class | B |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 10.4200 |
| Full Load Efficiency Rating | 80.9 |
| Service Factor Rating | 1 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
