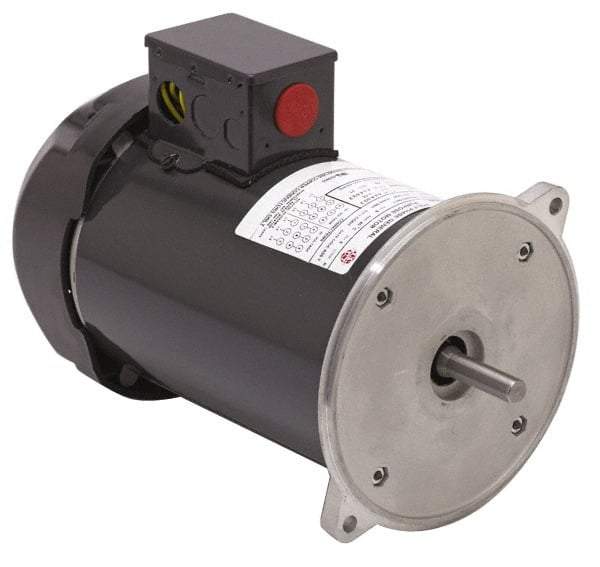

US Motors - 1/2 hp, TEFC Enclosure, Manual Thermal Protection, 1,725 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Flange Mount, 1 Speed, Ball Bearings, 8.0/4.0&9.6/4.8 Full Load Amps, B Class Insulation, Reversible
Item #: 53656062
Brand: US Motors
Model #: FD12CM2PZY
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEFC |
| Horsepower | 1/2 |
| Thermal Protection Rating | Manual |
| Name Plate RPMs | 1725 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Flange |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 8.0/4.0&9.6/4.8 |
| Insulation Class | B |
| Full Load Efficiency Rating | 68.20 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
