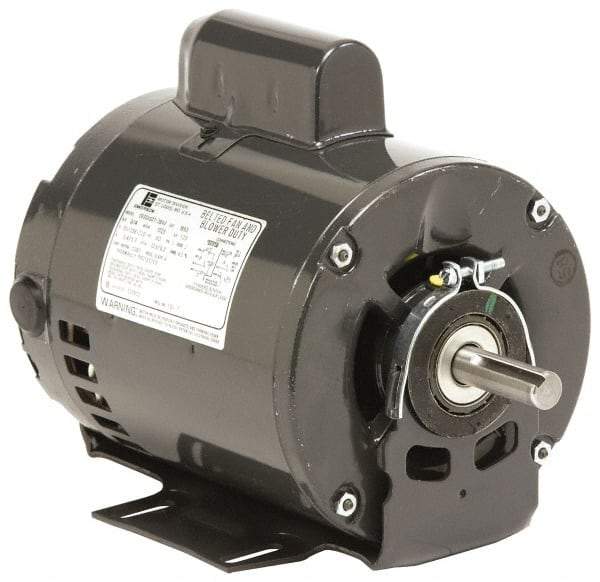

US Motors - 2 hp, TEAO Enclosure, No Thermal Protection, 1,725 RPM, 208-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 145 Frame, Rigid Mount, 1 Speed, Ball Bearings, 6.3-6.2/3.1 Full Load Amps, B Class Insulation, Reversible
Item #: 53655403
Brand: US Motors
Model #: 8461
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | TEAO |
| Horsepower | 2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 145 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 6.3-6.2/3.1 |
| Insulation Class | B |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 12.5000 |
| Shaft Diameter x Length (Inch) | 7/8 x 2-1/4 |
| Full Load Efficiency Rating | 87.4 |
| Service Factor Rating | 1 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
