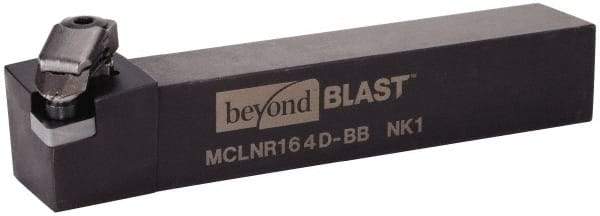

Kennametal - MCLN, Right Hand Cut, -5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.5mm OAL, CN..1204.. Insert Compatibility, Series Kenloc
Item #: 53242533
Brand: Kennametal
Model #: 4151717
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MCLN |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Kenloc |
| Lead Angle | -5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 152.50 |
| Overall Length (Decimal Inch) | 6.0039 |
| Insert Compatibility | CN..1204.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (mm) | 32.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2795 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
