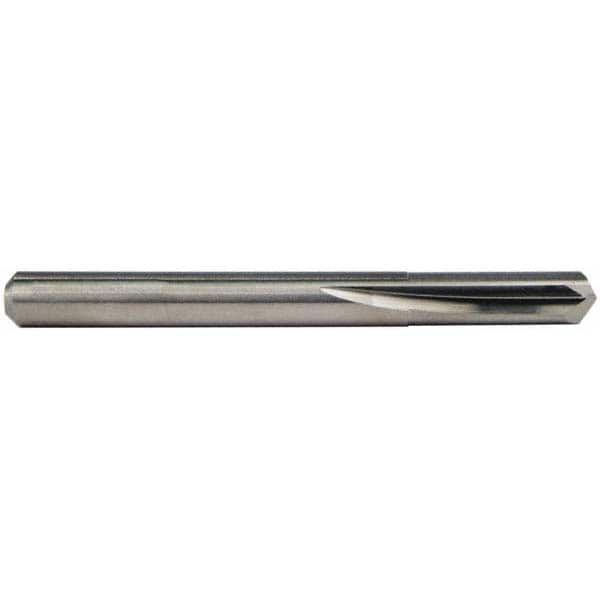

Straight-Flute Drill Bit: Letter K, 135 deg Point
Item #: 81316416
Brand: M.A. Ford
Model #: 20028100
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Letter) | K |
| Drill Bit Size (mm) | 7.14 |
| Tool Material | Carbide |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 3/4 |
| Flute Length (Decimal Inch) | 0.7500 |
| Drill Point Angle | 135 |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Decimal Inch) | 0.2810 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2810 |
| Overall Length (Decimal Inch) | 2.5000 |
| Series | 200 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Tool Application | Holemaking |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in; +0.000 to -0.013 mm |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | DIN |
| Shank Length (Inch) | 1-3/4 |
| Shank Length (Decimal Inch) | 1.7500 |
| UNSPSC Code | 23241600 |
| Flute By Diameter Ratio | 3xD |
| Country of Origin | UNITED STATES |
