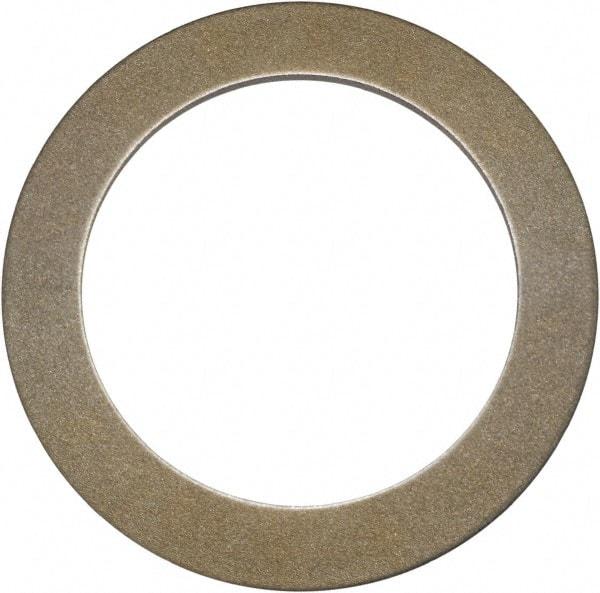

Mubea - 10.2mm ID, Grade 301 Stainless Steel, Phosphate & Oil Finish, Belleville Disc Spring - 28mm OD, 2.05mm High, 1.25mm Thick
Item #: 53123139
Brand: Mubea
Model #: 181005
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 10.20 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (mm) | 28.00 |
| Thickness (mm) | 1.25 |
| Overall Height (mm) | 2.05 |
| Deflection (mm) | 0.80 |
| Deflection to Flat (mm) | 0.80 |
| Load at Flat (N) | 2142.00 |
| Load at Deflection (N) | 2142.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
