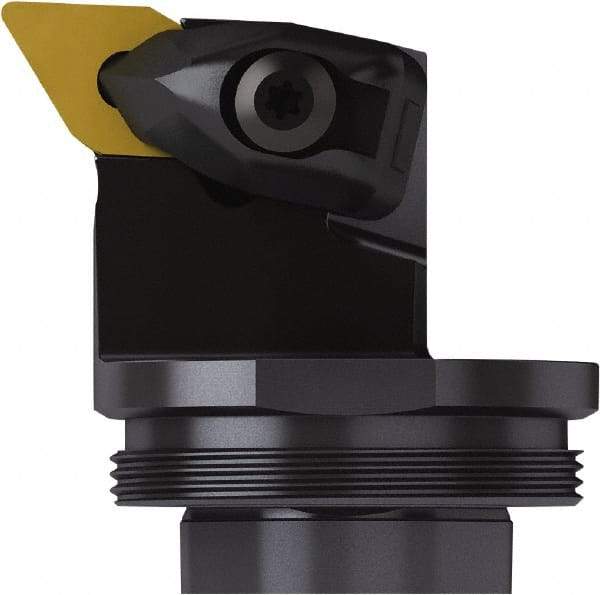

Seco - Left Hand Cut, Size GL32, DN.. 33.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 32mm Head Length, Series SteadyLine
Item #: 53095188
Brand: Seco
Model #: 10869
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | GL32 |
| Series Name | SteadyLine |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | DN.. 33.. |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | DNMU 330.5-M3; DNMU 331-FF2; DNMU 331-M3; DNMU 331-MF1; DNMU 331-MF2; DNMU 331-MF4; DNMU 331-MF5; DNMU 332-FF2; DNMU 332-M3; DNMU 332-M5; DNMU 332-MF1; DNMU 332-MF2; DNMU 332-MF4; DNMU 332-MF5; DNMU 333-M3; DNMU 333-M5; DNMU 333-MF2; DNMU 333-MF5; DNMX 33 |
