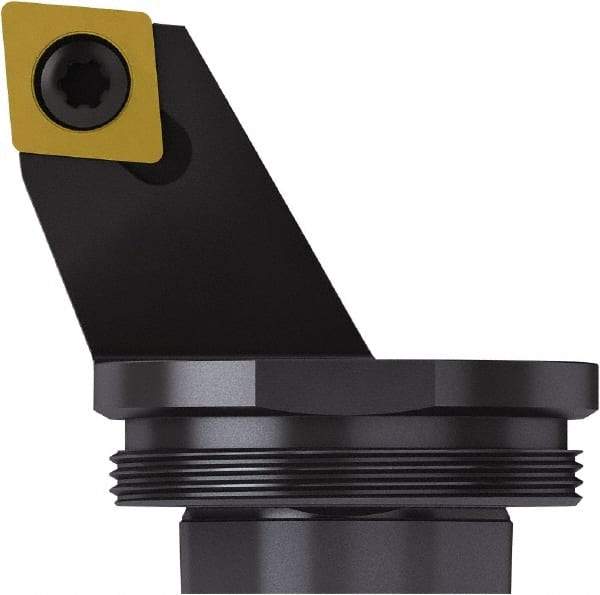

Seco - Right Hand Cut, Size GL40, CC.. 32.5.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 32mm Head Length, Series SteadyLine
Item #: 53095048
Brand: Seco
Model #: 10632
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | GL40 |
| Series Name | SteadyLine |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | CC.. 32.5.. |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | CCGT 32.50.5-AL; CCGT 32.50-F1; CCGT 32.51-F1; CCGT 32.51F-AL; CCGT 32.51L-UX; CCGT 32.51-MF2; CCGT 32.51R-UX; CCGT 32.52F-AL; CCMT 32.50.5-F1; CCMT 32.50.5-F2; CCMT 32.50.5-MF2; CCMT 32.51-F1; CCMT 32.51-F2; CCMT 32.51-FF1; CCMT 32.51-M3; CCMT 32.51-M5; |
