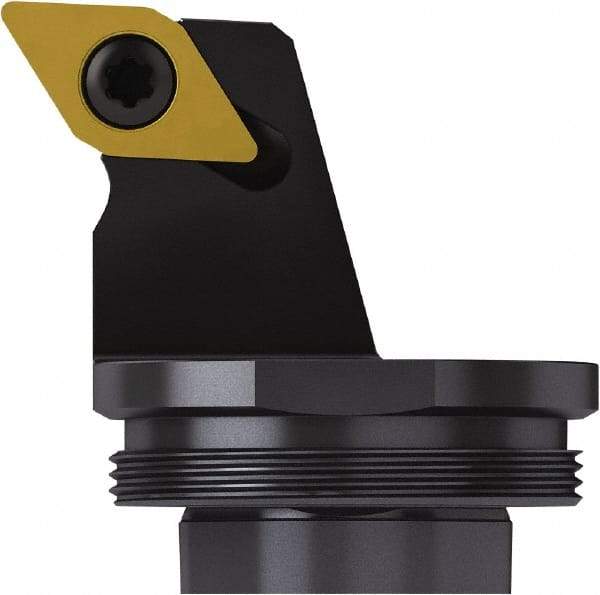

Seco - Left Hand Cut, Size GL32, DC.. 32.5.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 32mm Head Length, Series SteadyLine
Item #: 53094991
Brand: Seco
Model #: 10612
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | GL32 |
| Series Name | SteadyLine |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | DC.. 32.5.. |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | DCGT 32.50.5F-AL; DCGT 32.50-F1; DCGT 32.51-F1; DCGT 32.51F-AL; DCGT 32.51-MF2; DCGT 32.52F-AL; DCMT 32.50.5-F1; DCMT 32.50.5-F2; DCMT 32.50.5-FF1; DCMT 32.50.5-MF2; DCMT 32.51-F1; DCMT 32.51-F2; DCMT 32.51-FF1; DCMT 32.51-M3; DCMT 32.51-MF2; DCMT 32.52-F |
