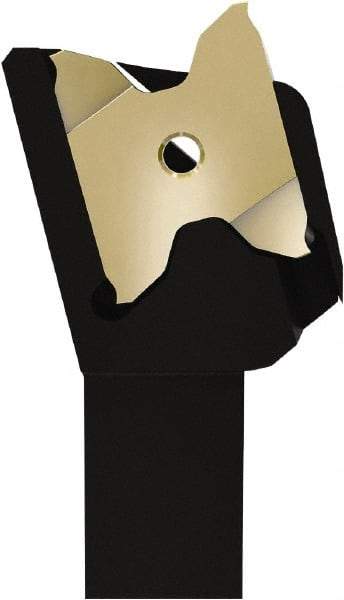

Seco - X4F, Right Hand Cut, 15.8mm Shank Height x 15.8mm Shank Width, Indexable Turning Toolholder - 126mm OAL
Item #: 53094843
Brand: Seco
Model #: 10699
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | X4F |
| Shank Width (mm) | 15.80 |
| Shank Width (Decimal Inch) | 0.6220 |
| Shank Height (mm) | 15.80 |
| Shank Height (Decimal Inch) | 0.6220 |
| Overall Length (mm) | 126.00 |
| Overall Length (Decimal Inch) | 4.9606 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 18.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7087 |
| Head Length (mm) | 36.60 |
| Head Length (Decimal Inch) | 1.4409 |
