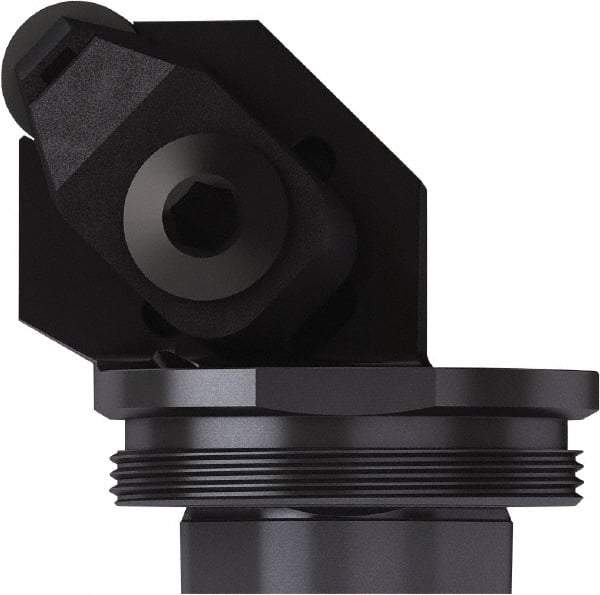

Seco - Right Hand Cut, Size GL32, RN.. 32.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 32mm Head Length, Series SteadyLine
Item #: 53094827
Brand: Seco
Model #: 10707
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | GL32 |
| Series Name | SteadyLine |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | RN.. 32.. |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | RNMG 32-MR4 |
