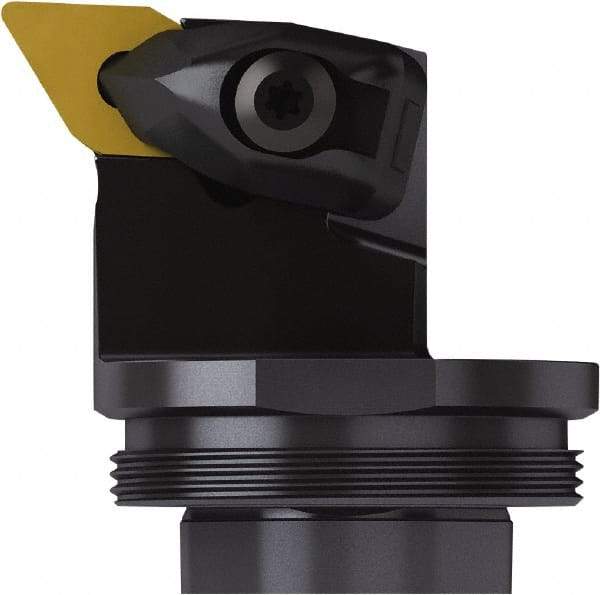

Seco - Right Hand Cut, Size GL50, DN.. 43.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 32mm Ctr to Cutting Edge, 32mm Head Length, Series SteadyLine
Item #: 53094777
Brand: Seco
Model #: 10788
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | GL50 |
| Series Name | SteadyLine |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | DN.. 43.. |
| Center to Cutting Edge (mm) | 32.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | DNGM 432-MF1; DNGP 430.5F-M1; DNGP 431-M1; DNGP 432F-M1; DNMA 432; DNMA 433; DNMG 431-FF2; DNMG 431-M3; DNMG 431-M5; DNMG 431-MF2; DNMG 431-MF3; DNMG 431-MF4; DNMG 432-FF2; DNMG 432-M3; DNMG 432-M3(O); DNMG 432-M5; DNMG 432-MF2; DNMG 432-MF3; DNMG 432-MF4 |
