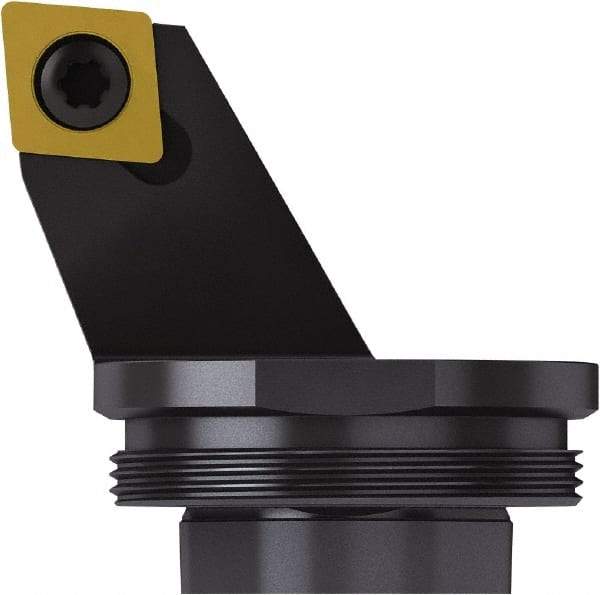

Seco - Right Hand Cut, Size GL50, CC.. 43.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 32mm Ctr to Cutting Edge, 32mm Head Length, Series SteadyLine
Item #: 53094751
Brand: Seco
Model #: 10801
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | GL50 |
| Series Name | SteadyLine |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | CC.. 43.. |
| Center to Cutting Edge (mm) | 32.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 63.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | CCGT 431F-AL; CCGT 432F-AL; CCGT 432L-UX; CCGT 432R-UX; CCMT 431-F1; CCMT 431-F2; CCMT 431-M3; CCMT 431W-F1; CCMT 432-F1; CCMT 432-F2; CCMT 432-M3; CCMT 432-M5; CCMT 432-MF2; CCMT 432W-F1; CCMT 433-F1; CCMT 433-F2; CCMT 433-M3; CCMT 433-M5 |
