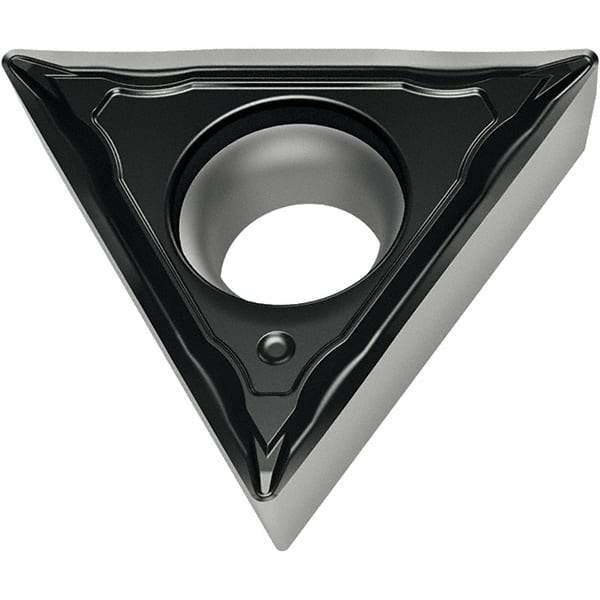

Walter - TCMT1.21.21 FP4 Grade WPP20S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 1/64" Corner Radius
Item #: 53080180
Brand: Walter
Model #: 6436299
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 1.21.21 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0781 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WPP20S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P20/K30 |
| Chip Breaker | FP4 |
| ISO Number | TCMT06T104-FP4 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TCMT06T104-FP4 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 60 |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
