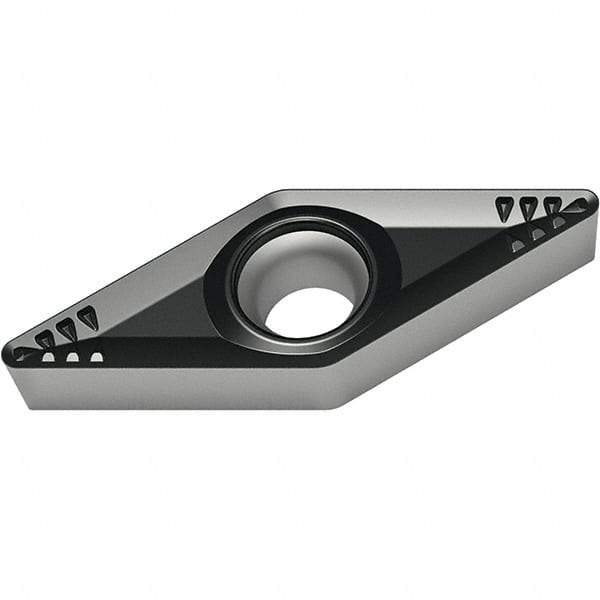

Walter - VCMT221 RP4 Grade WPP30S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 53079141
Brand: Walter
Model #: 6449798
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCMT |
| Insert Size | 221 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WPP30S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P30 |
| Chip Breaker | RP4 |
| ISO Number | VCMT110304-RP4 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | VCMT110304-RP4 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
