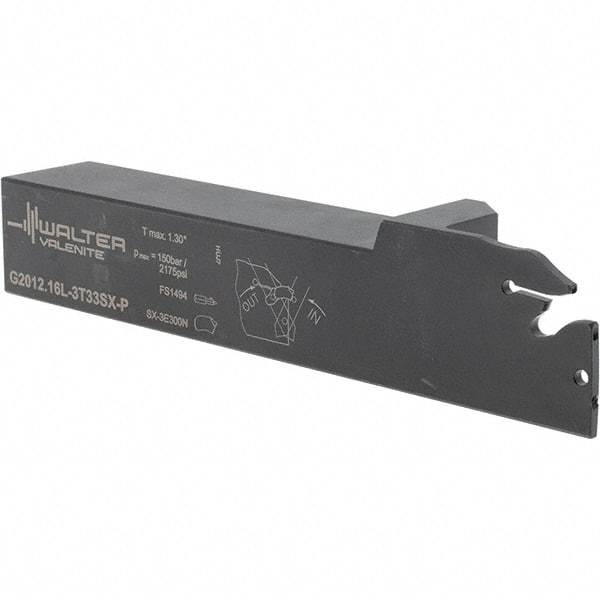

Walter - External Thread, 1.102" Max Depth of Cut, 4.9" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, SX-3.. Insert Style, G2012 Toolholder Style
Item #: 53078770
Brand: Walter
Model #: 6424515
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.1020 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Overall Length (Decimal Inch) | 4.9000 |
| Toolholder Style | G2012 |
| Insert Compatibility | SX-3.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Self Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9510 |
| Head Length (Decimal Inch) | 1.7400 |
| Shank Length (Decimal Inch) | 3.1600 |
| Complete Insert Compatibility | SX-3E300N02-CE4; SX-3E300N02-CF5; SX-3E300N02-CF6 |
